Applications of rod ends bearing
1) Agriculture,
2) Light textile,
3) Mining,
4) Food &beverage,
5) Pharmaceutical,
6) Chemical processing,
7) Printing,
8) Dyeing, airport,
9) Air-conditioning,
10) Various kinds of conveying and rolling devices.
Features of rod end bearings
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Rod end bearing has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Rod end bearing has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.
Product Standard:
Bearings
number | Dimensions(mm) | a |
Load ratings |
weight
(kg) |
| dk | L5 | w | d4 | d5 | min | d | B | c1 | d2 max | L3 | L2 | L4 | G | Dynamic |
Static |

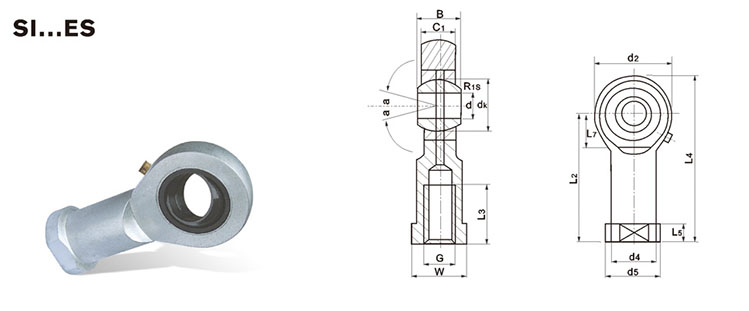

| SI5E | 10 | 5 | 10 | 10 | 13 | 0.3 | 5 | 6 | 4.4 | 21 | 11 | 30 | 42 | M5x0.8 | 13 | 3.4 | 8.1 | 0.021 |
| SI6E | 10 | 5 | 11 | 10 | 13 | 0.3 | 6 | 6 | 4.4 | 21 | 11 | 30 | 40.5 | M6×1.0 | 13 | 3.4 | 8.15 | 0.039 |
| SI8E | 13 | 5 | 140 | 12.5 | 16 | 0.3 | 8 | 8 | 6 | 24 | 15 | 36 | 48 | M8×1.25 | 15 | 5.5 | 12.9 | 0.061 |
| SI10E | 16 | 6.5 | 17 | 15 | 19 | 0.3 | 10 | 9 | 7 | 29 | 20 | 43 | 57.5 | M10X1.5 | 12 | 8.15 | 17.6 | 0.096 |
| SI12E | 18 | 6.5 | 19 | 17.5 | 22 | 0.3 | 12 | 10 | 8 | 34 | 23 | 50 | 67 | M12×1.75 | 11 | 10.8 | 24.5 | 0.18 |
| S115ES | 22 | 8 | 22 | 21 | 26 | 0.3 | 15 | 12 | 10 | 40 | 30 | 61 | 81 | M14×2.0 | 8 | 17 | 36 | 0.22 |
| SI17ES | 25 | 10 | 27 | 24 | 30 | 0.3 | 17 | 14 | 11 | 46 | 34 | 67 | 90 | M16×2.0 | 10 | 21.2 | 45 | 0.35 |
| SI20ES | 29 | 10 | 32 | 27.5 | 35 | 0.6 | 20 | 16 | 13 | 53 | 40 | 77 | 103.5 | M20×1.5 | 9 | 30 | 60 | 0.35 |
| SI25ES | 35.5 | 12 | 36 | 33.5 | 42 | 0.6 | 25 | 20 | 17 | 64 | 48 | 94 | 126 | M24×2 | 7 | 48 | 83 | 0.64 |
| SI30ES | 40.7 | 15 | 41 | 40 | 50 | 0.6 | 30 | 22 | 19 | 73 | 56 | 110 | 146.5 | M30×2 | 6 | 62 | 110 | 0.93 |
| SI35ES | 47 | 15 | 50 | 47 | 58 | 0.6 | 35 | 25 | 21 | 82 | 60 | 125 | 166 | M36×3 | 6 | 80 | 146 | 1.3 |
| SI40ES | 53 | 18 | 55 | 52 | 65 | 0.6 | 40 | 28 | 23 | 92 | 65 | 142 | 188 | M39x3 | 7 | 100 | 180 | 2 |
| SI45ES | 60 | 20 | 60 | 58 | 70 | 0.6 | 45 | 32 | 27 | 102 | 65 | 145 | 196 | M42×2 | 7 | 127 | 240 | 2.5 |
| SI50ES | 66 | 20 | 65 | 62 | 75 | 0.6 | 50 | 35 | 30 | 112 | 68 | 160 | 216 | M45×3 | 6 | 156 | 290 | 3.5 |
| SI60ES | 80 | 20 | 75 | 70 | 88 | 1 | 60 | 44 | 38 | 135 | 70 | 175 | 242.5 | M52×3 | 6 | 245 | 450 | 5.5 |
| SI70ES | 92 | 20 | 85 | 80 | 98 | 1 | 70 | 49 | 42 | 160 | 80 | 200 | 280 | M56×4 | 6 | 315 | 610 | 8.6 |
| SI80ES | 105 | 25 | 100 | 95 | 110 | 1 | 80 | 55 | 47 | 180 | 85 | 230 | 320 | M64×4 | 6 | 400 | 750 | 12 |
| Dimensions in mm | |
| For lef-hand thread,suffix "L"is added to bearing number and thread sign.e.g.SIL20ES Sliding contact surfaces:Steel/ Steel |
| Design and application features: |
Combination rod end with malec or female thread is made up of a rod end a radial spherical plain bearing of series GE..E or GE... ES,rod end of steel and zinc coated;Can be lubicated via a nipple or a hole in the rod end. It has characteristic of large load capability. easy mounting and dismounting and me chanismsimplification.
Stainless steel can be customized
